PREMIUM DRAWERS

Upgrade to a premium Double Wall metal box with integrated soft-close full-extension guides to get more out of your market rate units. The sturdy square profile metal sides have a classic wood construction look but are lighter. Concealed drawer guides allow a clean profile when the drawers are open.

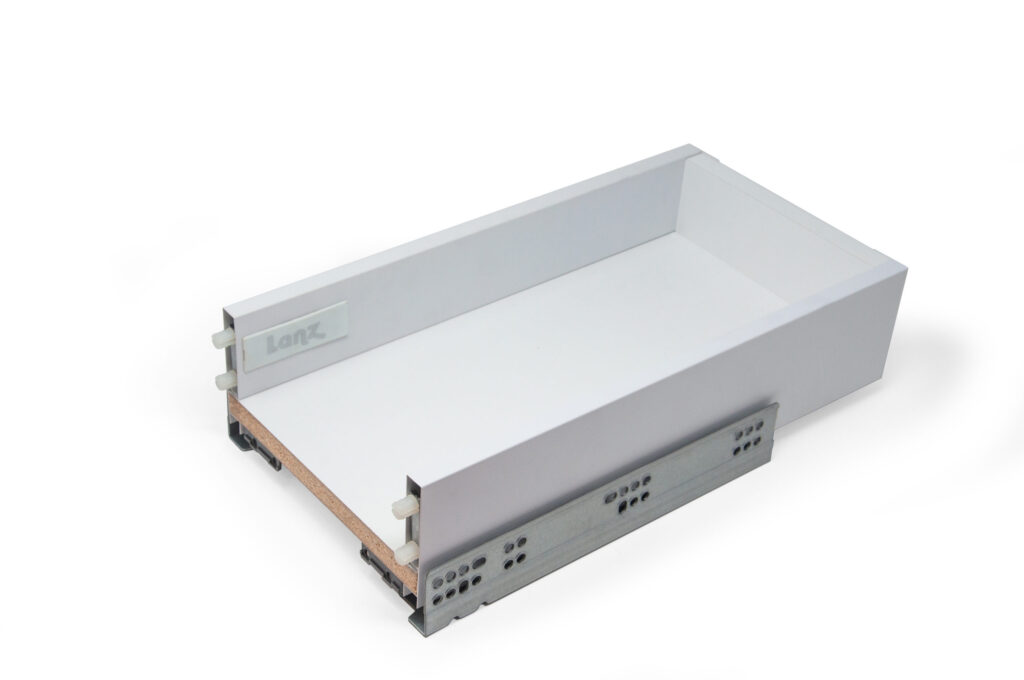

Standard drawer

(2.5" high sides)

DOUBLE WALL METAL BOX

WITH INTEGRATED GUIDES

  • Soft-close, silent system
  • Full-extension, undermount guides
  • 100 lb. dynamic load capacity
  • White double-walled metal sides,
    ⅝” particle board, MDF, or white wrapped plywood back and bottom
  • Full adjustment (up, down, left, right)
  • 36″ max drawer width
  • 2.5″ high sides, Deep drawer sides are 5″ high
  • KCMA, BHMA, BIFMA

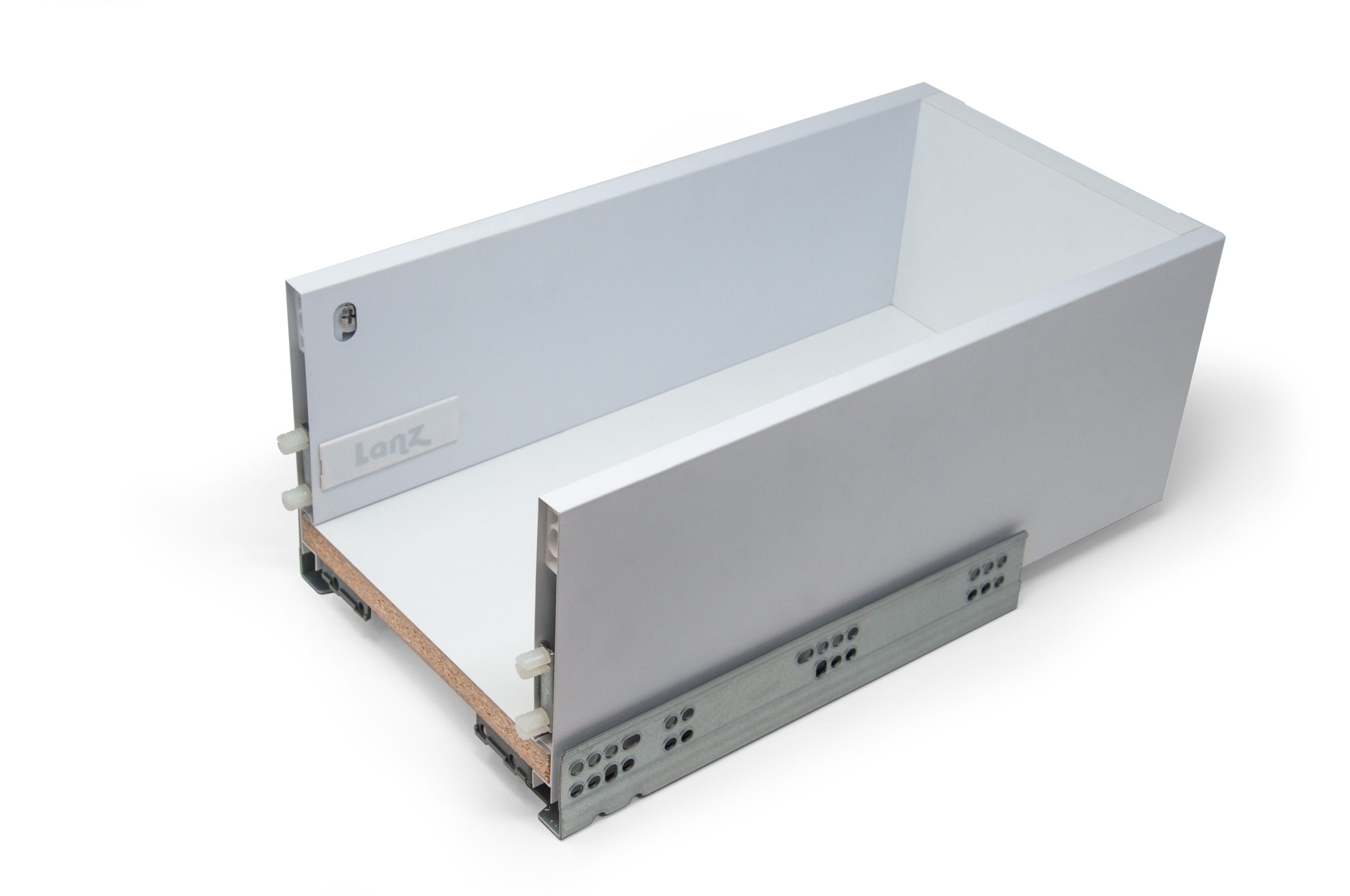

DEEP DRAWER

(5.25" high sides)

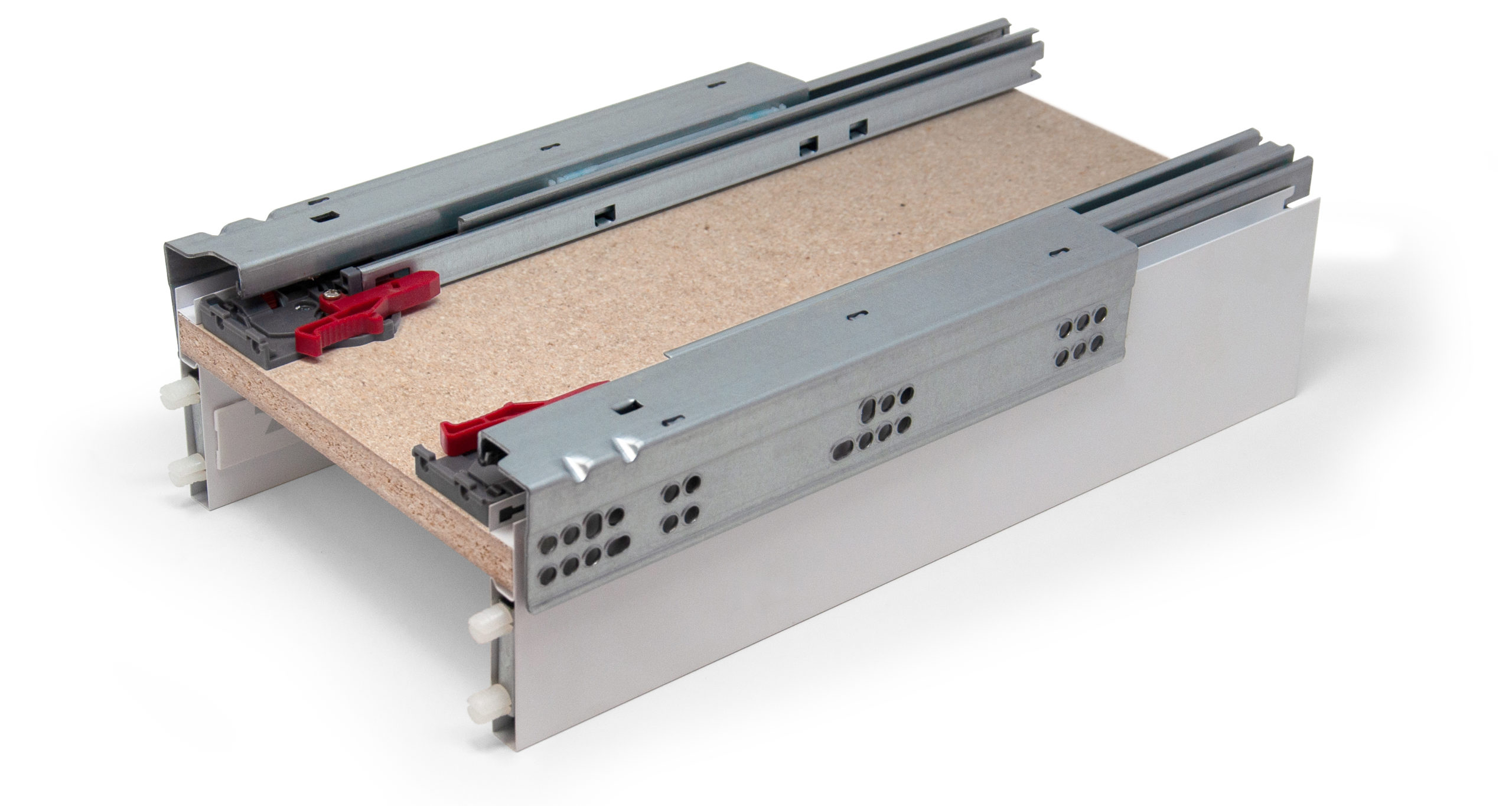

DRAWER UNDERSIDE

DRAWER BOX

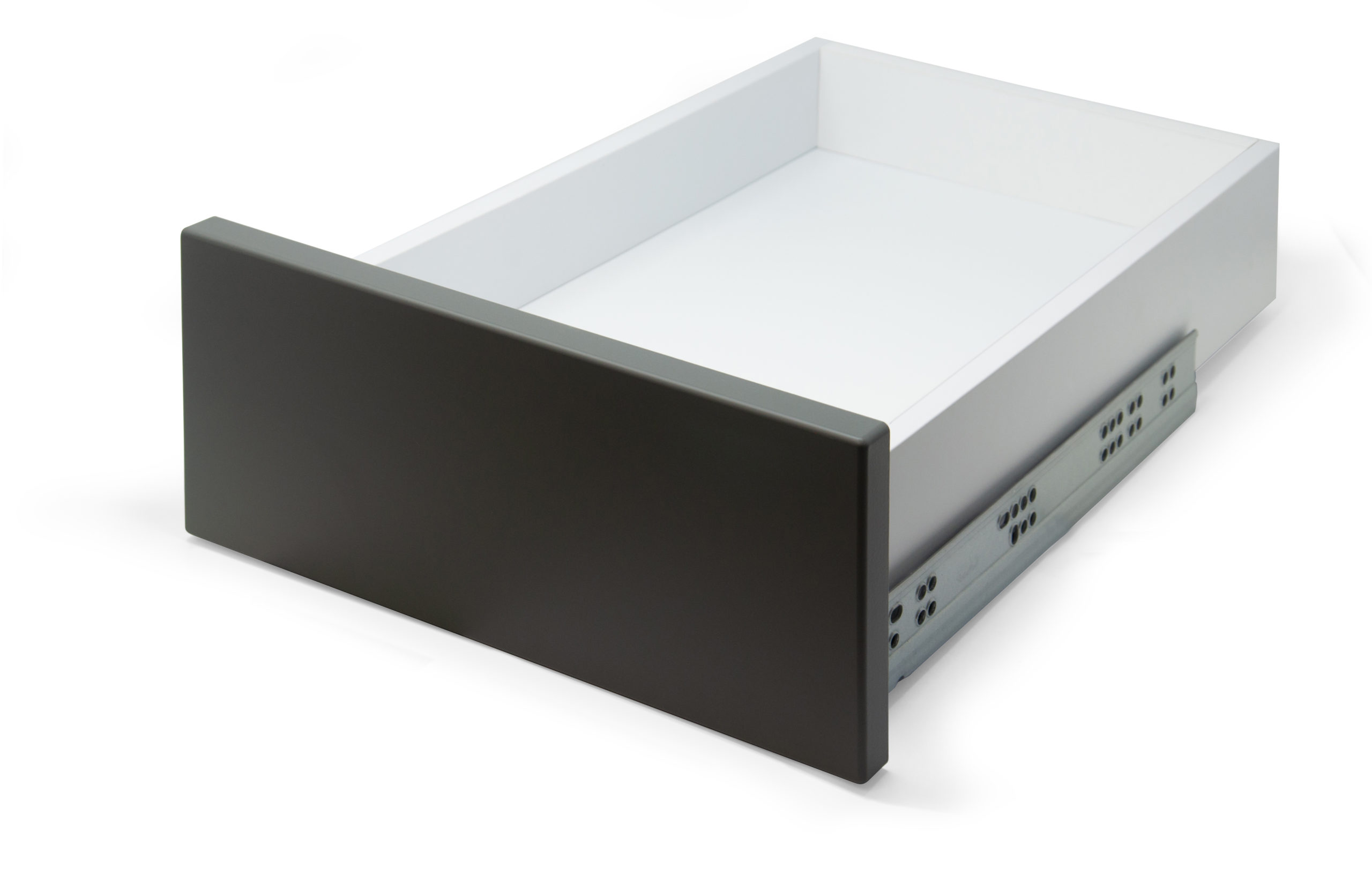

ATTACHED FACE

The Kitchen Cabinet Manufacturers Association (KCMA) tests drawers and drawer guides with 15 pounds per square foot of drawer load and operates the drawer repeatedly (25,000 cycles) to test for durability and load handling capabilities. The drawers and guides we offer at Lanz Cabinets are designed to meet or exceed these specifications. Please see your chosen guide for actual details and limitations.
