OPTIONAL CONSTRUCTION

LIFT HINGE

Lanz offers premium lift hinges for your upper cabinets. Doors can be left open and out of the way while working in the kitchen. Variable stop allows the door to be partially open for easy reach to close.

FEATURES

  • Variable stop holds door open in any position
  • The unhanded lift system can be used on either side of the cabinet or on both sides for doors over 24″ wide*
  • Cabinet height range 9.5 to 24″ to maximum width of 36″
  • Interior depth minimum 4″
  • Silent effortless close
  • Opening angle: 105°
  • Optional concealed touch latch to open door without decorative hardware
  • Easy adjustment

*Two symetrical lift mechanisms are required for cabinet widths greater than 24″

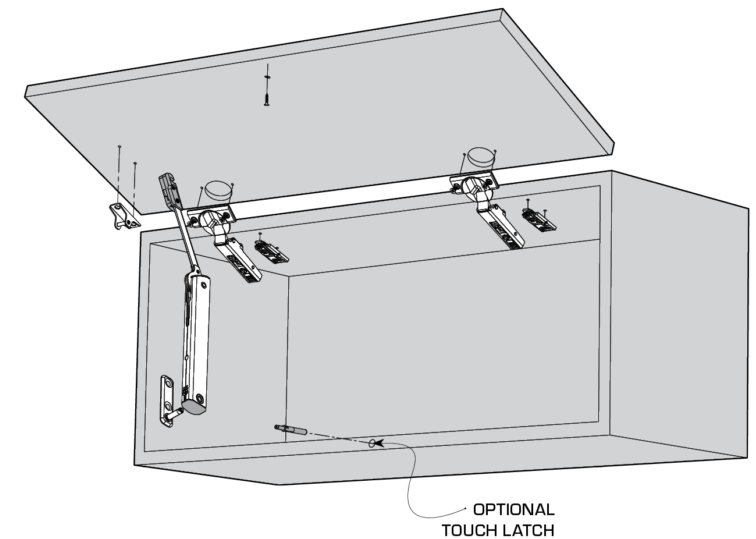

HINGE DETAIL

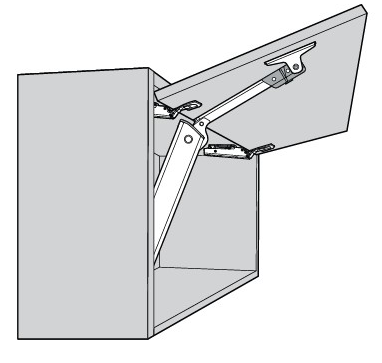

SIDE VIEW
